revit读取材料的外观信息不能通过lookup来搞定,所以读取起来稍微有点麻烦。但是在revit二次开发的官方基础教程里有相关的解释。

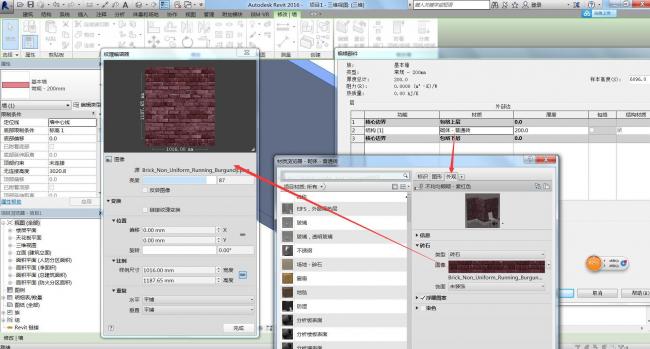

         这里就以一个墙体为例,读取墙体材料的所有外观信息(如下图)。这里主要针对autodesk的官方材料库来说的。对于非官方材料库的,下面的代码里被注释掉的可以参考一下。其实读取材料的原理比较简单,过程如下:

1)获取材料的ID,ICollection<ElementId> matId = elem.GetMaterialIds(true);

2)// 读取revit标准材质库
            AssetSet objlibraryAsset = revitApp.get_Assets(AssetType.Appearance);

3)从CompoundStructureLayer中获得材料

4)分两种情况读取材料。



       对于 APT_Asset和APT_Reference这两种类型还需要再次递归。具体代码如下:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Autodesk.Revit.UI;
using Autodesk.Revit.DB;
using Autodesk.Revit.UI.Selection;
using Autodesk.Revit.ApplicationServices;
using Autodesk.Revit.Utility;
using System.IO;

namespace 读取墙体材料
{
 [Autodesk.Revit.Attributes.Transaction(Autodesk.Revit.Attributes.TransactionMode.Manual)]
 [Autodesk.Revit.Attributes.Journaling(Autodesk.Revit.Attributes.JournalingMode.NoCommandData)]
 [Autodesk.Revit.Attributes.Regeneration(Autodesk.Revit.Attributes.RegenerationOption.Manual)]
 public class MyClass : IExternalCommand
 {
 public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)
 {
 Document revitDoc = commandData.Application.ActiveUIDocument.Document; //取得文档
 Application revitApp = commandData.Application.Application; //取得应用程序
 UIDocument uiDoc = commandData.Application.ActiveUIDocument;
 Selection sel = uiDoc.Selection;
 Reference ref1 = sel.PickObject(ObjectType.Element, "选择一个族实例");
 Element elem = revitDoc.GetElement(ref1);

 // 读取revit标准材质库
 AssetSet objlibraryAsset = revitApp.get_Assets(AssetType.Appearance);

 Wall wall = elem as Wall;
 ICollection<ElementId> matId = elem.GetMaterialIds(true);
 #region 从elementId中获得材料,这种方法获得的是主材
 //foreach (var item in matId)
 //{

 // TaskDialog.Show("REVIT", item.ToString());
 // Material mat2 = revitDoc.GetElement(item) as Material; //从elementId中获得材料
 //}
 #endregion

 #region 从CompoundStructureLayer中获得材料,这种方法可以获得与该元素相关的全部材料
 WallType wallType = wall.WallType;
 CompoundStructure compoundStructure = wallType.GetCompoundStructure();
 IList<CompoundStructureLayer> layers = compoundStructure.GetLayers();
 ReadAssetProperty readAssetProperty = new ReadAssetProperty();
 foreach (var item in layers)
 {

 Material mat2 = revitDoc.GetElement(item.MaterialId) as Material;
 // TaskDialog.Show("REVIT", mat2.Name.ToString()+ mat2.Id);
 ElementId assetElementId = mat2.AppearanceAssetId;
 if(assetElementId!=ElementId.InvalidElementId)
 {
 //获取外观元素
 AppearanceAssetElement appearanceAssetElement = revitDoc.GetElement(assetElementId) as AppearanceAssetElement;

 //读写外观元素

 Asset currentAsset = appearanceAssetElement.GetRenderingAsset();
 // TaskDialog.Show("revit", currentAsset.AssetType.ToString() + ";" + currentAsset.LibraryName.ToString()
 // + ";" + currentAsset.Title.ToString()+";" + currentAsset.Size.ToString());

 ////外观子元素
 //IList<AssetProperty> listProperty=new List<AssetProperty>() ;
 //for(int i=0;i<currentAsset.Size;i++)
 //{
 // listProperty.Add(currentAsset[i]);
 //}

 //string info = "";
 //foreach(var item2 in listProperty)
 //{
 // info += item2.Name.ToString()+ "n";
 //}
 //TaskDialog.Show("revit", info);
 ReadAsset(currentAsset, objlibraryAsset, readAssetProperty, assetElementId.ToString());
 }
 }

 #endregion
 Form1 form = new Form1();
 form.ShowDialog();

 return Result.Succeeded;
 }
 public void ReadAsset(Asset currentAsset, AssetSet objlibraryAsset, ReadAssetProperty readAssetProperty,string matId)
 {
 //欧特克的外观子元素
 IList<AssetProperty> listProperty = new List<AssetProperty>();
 if (currentAsset.Size == 0)
 {
 foreach (Asset objCurrentAsset in objlibraryAsset)
 {
 if (objCurrentAsset.Name == currentAsset.Name &&
 objCurrentAsset.LibraryName == currentAsset.LibraryName)
 {
 for (int i = 0; i < objCurrentAsset.Size; i++)
 {
 listProperty.Add(objCurrentAsset[i]);
 }
 foreach (var item2 in listProperty)
 {
 ReadAutodeskAssetProperty(item2, readAssetProperty, objlibraryAsset,matId);
 }
 }
 }
 }
 else
 {

 for (int i = 0; i < currentAsset.Size; i++)
 {
 listProperty.Add(currentAsset[i]);
 }
 foreach (var item2 in listProperty)
 {
 ReadAutodeskAssetProperty(item2, readAssetProperty, objlibraryAsset, matId);
 }

 }
 }

 public void ReadAutodeskAssetProperty(AssetProperty assetProperty, ReadAssetProperty readAssetProperty, AssetSet objlibraryAsset, string matId)
 {
 switch (assetProperty.Type)
 {
 case AssetPropertyType.APT_Integer:
 var assetPropertyInt = assetProperty as AssetPropertyInteger;
 if(readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyInt.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Distance:
 var assetPropertyDistance = assetProperty as AssetPropertyDistance;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyDistance.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Double:
 var assetPropertyDouble = assetProperty as AssetPropertyDouble;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyDouble.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_DoubleArray2d:
 var assetPropertyDoubleArray2d = assetProperty as AssetPropertyDoubleArray2d;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyDoubleArray2d.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_DoubleArray4d:
 var assetPropertyDoubleArray4d = assetProperty as AssetPropertyDoubleArray4d;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 string value4d = assetPropertyDoubleArray4d.Value.get_Item(0).ToString() + "," + assetPropertyDoubleArray4d.Value.get_Item(1).ToString() + "," +
 assetPropertyDoubleArray4d.Value.get_Item(2).ToString() + "," + assetPropertyDoubleArray4d.Value.get_Item(3).ToString();
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), value4d);
 }
 break;

 case AssetPropertyType.APT_String:
 var assetPropertyString = assetProperty as AssetPropertyString;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyString.Value);
 }
 break;

 case AssetPropertyType.APT_Boolean:
 var assetPropertyBoolean = assetProperty as AssetPropertyBoolean;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyBoolean.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Double44:
 var assetPropertyDouble44 = assetProperty as AssetPropertyDoubleArray4d;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), assetPropertyDouble44.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_List:
 AssetPropertyList propList = assetProperty as AssetPropertyList;
 IList<AssetProperty> subProps = propList.GetValue();
 if (subProps.Count == 0)
 break;
 switch (subProps[0].Type)
 {
 case AssetPropertyType.APT_Integer:
 foreach (AssetProperty subProp in subProps)
 {
 AssetPropertyInteger intProp = subProp as AssetPropertyInteger;
 if (readAssetProperty.CheckMaterialMxExists(matId, assetProperty.Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, assetProperty.Name, assetProperty.Type.ToString(), intProp.Value.ToString());
 }
 }
 break;
 }
 break;

 case AssetPropertyType.APT_Asset:
 var assetPropertyAsset = assetProperty as Asset;
 ReadAsset(assetPropertyAsset, objlibraryAsset, readAssetProperty,matId);
 break;

 case AssetPropertyType.APT_Reference:

 var assetPropertyReference = assetProperty as AssetPropertyReference;
 IList<AssetProperty> listProperty2 = assetPropertyReference.GetAllConnectedProperties();
 foreach (var item3 in listProperty2)
 {
 var AssetProperty3 = item3 as Asset;
 for (int i = 0; i < AssetProperty3.Size; i++)
 {
 switch (AssetProperty3[i].Type)
 {
 case AssetPropertyType.APT_Integer:
 var assetPropertyInt2 = AssetProperty3[i] as AssetPropertyInteger;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyInt2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Distance:
 var assetPropertyDistance2 = AssetProperty3[i] as AssetPropertyDistance;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyDistance2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Double:
 var assetPropertyDouble2 = AssetProperty3[i] as AssetPropertyDouble;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyDouble2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_DoubleArray2d:
 var assetPropertyDoubleArray2d2 = AssetProperty3[i] as AssetPropertyDoubleArray2d;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyDoubleArray2d2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_DoubleArray4d:
 var assetPropertyDoubleArray4d2 = AssetProperty3[i] as AssetPropertyDoubleArray4d;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyDoubleArray4d2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_String:
 var assetPropertyString2 = AssetProperty3[i] as AssetPropertyString;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyString2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Boolean:
 var assetPropertyBoolean2 = AssetProperty3[i] as AssetPropertyBoolean;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyBoolean2.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_Double44:
 var assetPropertyDouble442 = AssetProperty3[i] as AssetPropertyDoubleArray4d;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), assetPropertyDouble442.Value.ToString());
 }
 break;

 case AssetPropertyType.APT_List:
 AssetPropertyList propList2 = AssetProperty3[i] as AssetPropertyList;
 IList<AssetProperty> subProps2 = propList2.GetValue();
 if (subProps2.Count == 0)
 break;
 switch (subProps2[0].Type)
 {
 case AssetPropertyType.APT_Integer:
 foreach (AssetProperty subProp in subProps2)
 {
 AssetPropertyInteger intProp2 = subProp as AssetPropertyInteger;
 if (readAssetProperty.CheckMaterialMxExists(matId, AssetProperty3[i].Name))
 {
 readAssetProperty.ReadAssetPropertyFromRevit(matId, AssetProperty3[i].Name, AssetProperty3[i].Type.ToString(), intProp2.Value.ToString());
 }
 }
 break;
 }
 break;
 }

 }
 }
 break;
 default:
 //info += assetProperty.Name + ";" + assetProperty.Type.ToString() + "n";
 break;
 }
 }
 }
}

这其中还有一个往数据库中读取材料性质的类,这个类有两个作用:

1)把材料放到数据库里

2)检查数据库里是否已经存在该材料的信息

其中下面这句代码是数据库的链接地址,依据个人的电脑不同而改变。

private string str = "Data Source=USER-20161016YAMEDICINE;Initial Catalog=MyMaterials;Integrated Security=True";

using System;
using System.Collections.Generic;
using System.Data.SqlClient;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace 读取墙体材料
{

 public class ReadAssetProperty
 {
 private string str = "Data Source=USER-20161016YAMEDICINE;Initial Catalog=MyMaterials;Integrated Security=True";
 public void ReadAssetPropertyFromRevit(string materialId ,string paramName, string type,string value)
 {
 int n = -1;
 //连接数据库
 using (SqlConnection con = new SqlConnection(str))
 {
 //string sql = string.Format("insert into MaterialFormRevit(MaterialId,ParamName, MatType, Value) values('{0}','{1}','{2}',{3})", 1,paramName, type, value);
 string sql = string.Format("insert into MaterialFormRevit(MaterialId,ParamName, MatType, Value) values('{0}','{1}','{2}','{3}')", materialId, paramName, type, value);
 using (SqlCommand cmd = new SqlCommand(sql, con))
 {
 con.Open();
 n = cmd.ExecuteNonQuery();
 }
 }
 //string msg = n > 0 ? "操作成功" : "操作失败";
 //LoadData();//刷新数据
 }
 public bool CheckMaterialMxExists(string strMaterialId, string paramName)
 {
 bool flag = false;
 SqlConnection mycon = new SqlConnection(str);
 //查询此编号是否存在
 mycon.Open();
 SqlCommand mycmd = new SqlCommand("select MaterialId from MaterialFormRevit where MaterialId='" + strMaterialId + "'AND ParamName='" + paramName + "'", mycon);
 SqlDataReader mysdr = mycmd.ExecuteReader();
 if (mysdr.HasRows)
 {
 flag = false;
 }
 else
 {
 flag = true;
 }
 mysdr.Close();
 mycon.Close();
 return flag;
 }
 }

}

其中中间过渡属性的材料如下

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace 读取墙体材料
{
 public class Depart
 {
 private int _MaterialId;
 private string _ParamName;
 private string _Type;
 private string _Value;

 public int MaterialId
 {
 get
 {
 return _MaterialId;
 }

 set
 {
 _MaterialId = value;
 }
 }

 public string ParamName
 {
 get
 {
 return _ParamName;
 }

 set
 {
 _ParamName = value;
 }
 }

 public string Type
 {
 get
 {
 return _Type;
 }

 set
 {
 _Type = value;
 }
 }

 public string Value
 {
 get
 {
 return _Value;
 }

 set
 {
 _Value = value;
 }
 }
 }
}

最后Form的代码如下:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Data.SqlClient;

namespace 读取墙体材料
{
 public partial class Form1 : Form
 {
 public Form1()
 {
 InitializeComponent();
 }
 string str = "Data Source=USER-20161016YAMEDICINE;Initial Catalog=MyMaterials;Integrated Security=True";
 private void Form1_Load(object sender, EventArgs e)
 {
 LoadData();
 }
 private void LoadData()
 {
 List<Depart> list = new List<Depart>();
 //通过连接字符串连接数据库
 using (SqlConnection con = new SqlConnection(str))
 {

 //拼接sql语句
 string sql = "select * from MaterialFormRevit";
 //准备执行sql语句的对象
 using (SqlCommand cmd = new SqlCommand(sql, con))
 {
 con.Open();//打开数据库
 //准备读数据
 using (SqlDataReader reader = cmd.ExecuteReader())
 {
 //判断是否有数据(有没有行)
 if (reader.HasRows)
 {

 //读取每一行
 while (reader.Read())
 {

 Depart dk = new Depart();//创建部门对象
 // dk.MaterialId= Convert.ToInt32(reader["MaterialId"]);
 dk.MaterialId =Convert.ToInt32(reader["MaterialId"].ToString()) ;
 dk.ParamName = reader["ParamName"].ToString();
 dk.Type = reader["MatType"].ToString();
 dk.Value = reader["Value"].ToString();

 list.Add(dk);//添加到集合中


 }//end while
 }//end if
 }// end sqldatareader
 }//end using
 }//end using


 dgv.AutoGenerateColumns = false;//禁止自动生成列
 dgv.DataSource = list;//绑定数据
 //dgv.SelectedRows[0].Selected = false;//禁止被选中

 }
 }
}

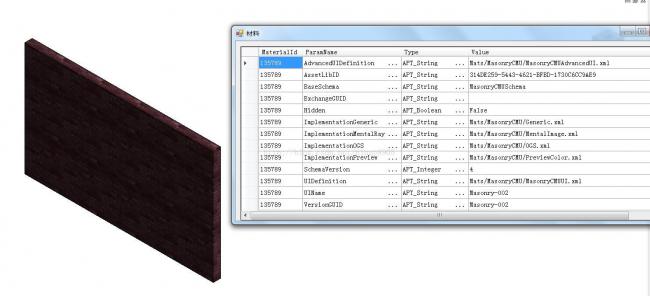

最后结果如图:

0

评论0

请先
彩色OCR、带书签 24DX002-1 建筑电气与智能化通用规范图示.pdf
彩色OCR、带书签 24DX002-1 建筑电气与智能化通用规范图示.pdf
刚刚 有人购买 去瞅瞅看

社交账号快速登录

微信扫一扫关注
扫码关注后会自动登录网站
